Gate Motor Repair: Troubleshooting and Diagnostics

When an automated driveway gate stops halfway across the drive or sits humming without moving, property owners often assume the motor has failed completely. In many cases, mechanical resistance is a significant contributing factor. Environmental exposure, moisture, and shifting gate hardware can create drag on hinges and track rollers. This added resistance can cause the operator to draw higher current, potentially leading to gear wear, safety trip activations, or component failure.^[3]

According to Ironworks Gate Co., accurate diagnosis helps determine whether a targeted component replacement, mechanical adjustment, or full operator replacement is needed. Professional gate motor diagnostics aim to identify the point of failure, maintain compliance with applicable safety guidelines, and support reliable property access.^[2] See also Gate Repair Cost – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate.

Gate Motor Diagnostics: Step-by-Step Troubleshooting

Automatic gate motor repair generally involves a systematic approach that distinguishes mechanical binding from electrical issues. Evaluating the drive mechanism under load helps determine why the motor is under strain.^[1]

What Happens During a Professional Service Call

1. Manual Release and Physical Resistance Test: The technician disconnects the operator arm or drive chain using the manual release. Moving the gate leaf manually helps determine whether resistance stems from hardware wear, track misalignment, or hinge issues. When a gate requires excessive manual effort to move, the operator may strain during normal cycles.
2. Electrical Load and Component Testing: The technician can inspect incoming line voltage, test motor start components, check wiring terminals for corrosion, and review diagnostic codes on the control board to verify whether operating current remains within manufacturer specifications.
3. Safety Device and Limit Switch Inspection: Entrapment protection devices, including monitored photo-eyes, safety edges, and loop detectors, are tested for proper function. Moisture, condensation, or lens obstruction can sometimes cause the control board to hold the gate open in safety mode.
4. Component Repair vs. Replacement Evaluation: After diagnosing the issue, service providers like Ironworks Gate Co. typically present options detailing whether component-level repair, mechanical realignment, or operator replacement is recommended.

Mechanical Drag vs. Electrical Failure

Outdoor gate operators are exposed to varying weather and environmental conditions. Exposure to moisture, salt air, and debris can affect moving parts like steel tracks, rollers, and hinges over time. Without adequate maintenance or weather-resistant hardware, mechanical assemblies can begin to bind.

When mounting posts shift or rollers wear out, the gate frame may become misaligned, placing additional load on the drive mechanism. Modern operators commonly include current-sensing features that halt operation if excess drag is detected, helping prevent severe motor damage. Correctly identifying whether an issue is mechanical or electrical prevents replacing an operator while underlying mechanical resistance remains unaddressed.

Diagnostic Check	Electrical Motor Failure	Mechanical Binding / Drag
Manual Release Test	Gate swings or slides freely with light manual effort.	Gate catches, grinds, scrapes, or resists manual movement.
Control Board Behavior	Board lacks power, indicates blown fuses, or relays do not engage.	Board powers up, engages, then stops on an over-current or obstruction signal.
Motor Sound	Silence, or a low hum with no drive shaft movement.	Motor strains, groans, or runs briefly before stopping.
Correct Repair Path	Service or replace electrical components such as capacitors, transformers, or boards.	Service hinges, realign tracks, replace rollers, or adjust mounting hardware.

Gate Opener Repair vs. Replacement: Core Components

Many gate operator issues involve individual component failures rather than complete system loss. Most residential and commercial operators utilize modular assemblies, allowing specific parts to be serviced on-site.

Component	Common Failure Symptom	Recommended Repair Action
Start Capacitor (AC Motors)	Motor hums under power but fails to rotate.	Inspect and replace capacitor if out of specification.
Internal Reduction Gear	Motor runs normally, but the gate drive arm or chain does not engage.	Inspect and replace worn internal gear assemblies.
Photo-Eye Safety Sensors	Gate opens normally but does not close; control board indicates obstruction.	Clean lenses, verify alignment, or replace damaged sensors.
Limit Switch Assembly	Gate overshoots normal stopping points or stops prematurely.	Adjust limit settings or replace faulty micro-switches.
Motor Stator / Gearbox Housing	Severe corrosion, cracked structural housing, or seized main drive shaft.	Full operator replacement.

Start Capacitors and Control Boards

Single-phase AC gate operators often use a start capacitor to assist with initial startup torque. If mechanical resistance increases, electrical demand on starting components can rise. Over time, capacitors can degrade and lose effectiveness. As specialists at Ironworks Gate Co. observe, replacing a failing capacitor can often restore normal operation to an otherwise functional motor.

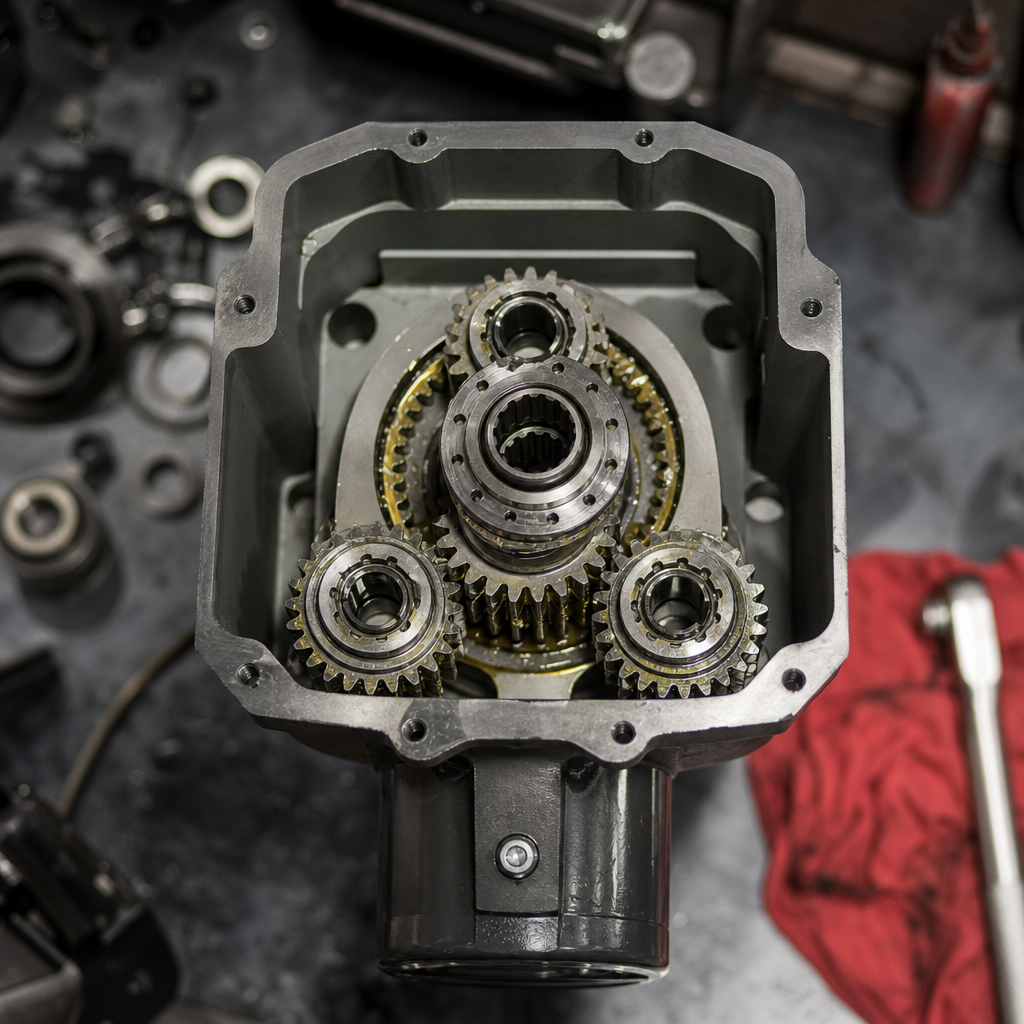

Drive Gears, Chains, and Belts

Many gate operators include internal gears or chain drives designed to transfer power to the gate. If the gate encounters an obstruction or physical impact, drive components may wear or strip to protect other parts of the drive assembly. Servicing drive gears or tensioning chains can often restore functionality.

Safety Sensors and Environmental Exposure

Moisture and debris can impact low-voltage wiring and sensor connections over time. When safety sensors lose signal continuity, control boards typically prevent automatic closing cycles. Installing weather-rated enclosures and maintaining sensor alignment helps reduce false obstruction triggers.

Diagnostic Considerations for Common Operator Types

Different gate operator manufacturers employ varying control board designs and diagnostic interfaces. Understanding these features can assist in efficient troubleshooting.

LiftMaster Residential and Commercial Operators

Many LiftMaster operators incorporate onboard diagnostic displays that show specific status codes. Technicians at Ironworks Gate Co. note that these codes help determine whether an issue relates to force adjustments, travel limit settings, safety accessories, or mechanical resistance.

DoorKing (DKS) Swing and Slide Gate Systems

Pad-mounted DoorKing units typically use dedicated contactors and mechanical limit assemblies. Verifying supply voltage under startup load is a standard diagnostic step, as improper supply voltage can lead to motor chatter or stalling.

Viking Access and Linear / Nice Systems

These systems often feature microprocessor-based control boards with diagnostic indicators. Technicians can check battery condition, wiring continuity, and operating current to verify that the operator is functioning within recommended parameters.

Gate Motor Repair vs. Replacement: General Guidelines

Deciding between repairing an existing operator or replacing the system generally depends on the age of the unit, physical condition of the housing, and component availability.

Repair Scope	Typical Components Addressed	General Outcome
Minor Electrical Repair	Capacitors, loop detectors, safety sensors, fuses, receivers.	Restores function to serviceable existing systems.
Mechanical Overhaul	Rollers, hinges, drive chains, internal gears, track adjustments.	Reduces operating strain and improves gate movement.
Full System Replacement	New operator unit, updated safety accessories, mounting hardware.	Provides modern system capabilities and updated components.

When to Consider Repair

• The operator housing and mechanical structure remain in sound condition.
• The issue is isolated to modular parts like capacitors, sensors, or relays.
• The gate operates smoothly by hand when disconnected from the operator.

When to Consider Replacement

• The motor housing or internal gearbox has experienced severe structural damage or heavy corrosion.
• The operator uses obsolete control systems that do not support current safety standards.
• The installed unit is undersized for the gate’s size, weight, or duty cycle requirements.

Frequently Asked Questions About Gate Motor Repair

How much does it cost to repair an electric gate motor?

Repair costs vary depending on the diagnostic findings, the specific components requiring service, and labor requirements. Minor electrical repairs or sensor adjustments typically involve lower overall costs, while internal gearbox overhauls or complete operator replacements require larger investments. Service companies generally provide estimates following an on-site inspection.

Why is my automatic gate motor humming but not opening?

A humming motor typically indicates that power is reaching the operator, but the drive mechanism cannot turn. Common factors include a failing start capacitor or physical resistance along the gate track and hinges. Using the manual release key allows you to check whether the gate moves freely by hand.

Can a sliding gate motor be repaired or does it need full replacement?

Many sliding gate operators can be repaired if the main chassis and motor assembly remain in good structural condition. Components such as sprockets, gears, limit switches, and safety sensors can often be serviced or replaced individually.

What are the common signs of a failing driveway gate opener?

Common indicators include unexpected reversals mid-cycle, unusual grinding or squeaking sounds, delayed response to controls, or noticeably slower travel speeds. Addressing mechanical or electrical symptoms early can help prevent further component strain.

How long do electric gate motors typically last?

Operational lifespan varies widely based on usage levels, weather exposure, component quality, and maintenance frequency. Operators in harsh or coastal environments may require more frequent inspection and servicing to maintain reliable operation over time.

Who should I call for automatic gate repair?

Property owners typically contact qualified gate automation technicians who service residential and commercial systems. Established providers like Ironworks Gate Co. offer diagnostics for both electrical controls and physical gate hardware to address the root cause of an operational issue.
