Automatic Gate Repair: Troubleshooting, Costs, and Safety Standards

When an automated entry system stops working, it quickly disrupts your day, leaves your property exposed, or traps your vehicle inside the driveway. Getting fast, dependable automatic gate repair starts with understanding what caused the breakdown and getting an upfront, written estimate before work begins. Automated gates are heavy motorized machinery, making precise diagnostic work and attention to safety standards necessary for every property owner.^[3]

According to data from the U.S. Consumer Product Safety Commission (CPSC), automated gates were involved in nearly 25,000 injuries from 1990 to 2000 and 32 deaths since 1985, including 20 child deaths. Two key safety standards relevant to automatic gate systems are UL 325, which addresses operator safety and entrapment protection devices, and ASTM F2200, which covers structural construction standards for automated vehicular gates. Whether dealing with a swing or slide system, understanding the root cause, as technicians at Ironworks Gate Co. emphasize, helps restore safe, reliable operation.^[1]

Practical Troubleshooting Advice: What to Check Before Requesting Automatic Gate Repair

(Practical Advice Note: The troubleshooting checks, coastal corrosion explanations, brand references, and cost estimates below reflect practical industry advice and are not verified by the research brief.)

Before calling for professional service, you can run through a few basic checks to isolate the issue. In coastal environments, electrical and physical challenges such as salt residue on circuit boards or shifting soil under post footings may arise. Verifying power and alignment first can save time and assist your technician with diagnosis.

Diagnostic Checklist (Practical Advice)

1. Operator Information: Note the make, model number, and locate your chassis access key.
2. Main Power: Check the dedicated electrical sub-panel and upstream GFCI outlets for tripped breakers.
3. Safety Devices: Look at the infrared photo-eyes to see if lenses are blocked by dirt, spiderwebs, or moisture.

Quick Troubleshooting Summary (Practical Advice)

1. Check Power Sources: Confirm the breaker switch and motor housing disconnect are turned on.
2. Clear the Optical Path: Clean coastal dew, salt film, or garden debris off sensor lenses.
3. Use the Manual Release: If your car is trapped, use the manual release key or pin to open the gate by hand.

Step 1: Inspect Power Disconnects and Circuit Issues (Practical Advice)

An unresponsive gate often comes down to an interrupted power supply or electrical bridging on the control board. In coastal areas, airborne salt particles can settle across terminal blocks inside the operator housing, absorbing moisture and potentially shorting low-voltage circuits or triggering false obstacle detections.

Locating the Breaker and Sub-Panel Disconnects

A systematic electrical check includes:

1. Locating the dedicated electrical sub-panel to verify the breaker is engaged.
2. Checking the power switch located inside or adjacent to the gate operator housing.
3. Testing and resetting exterior GFCI outlets connected upstream of the control board.

Diagnosing Circuit Board Corrosion

Open the operator chassis to inspect control board LEDs. Look for copper oxidation on terminal screws, insect nesting, or salt crust bridging solder joints. If the board receives high voltage but displays no diagnostic lights or shows fault codes, the control board or transformer may require professional testing and replacement.

Step 2: Clean and Realign Photo-Eye Safety Sensors (Practical Advice)

In accordance with UL 325 safety standards, automated gate systems typically incorporate monitored external entrapment protection devices, such as infrared photo-eye sensors. When the beam between the transmitter and receiver is interrupted, the operator prevents the gate from closing.^[2]

Troubleshooting Sensor Misalignment and Alert Tones

Many control boards emit an audible alert or clicking sound when the safety circuit remains open. Inspect the receiver unit: the indicator LED should remain solid. If the light flickers or stays dark, the optical beam may be misaligned or blocked.

Managing Coastal Fog and Sprinkler Spray

1. Gently clean salt film, moisture condensation, and dirt from lenses using a soft microfiber cloth.
2. Loosen mounting bracket screws and adjust the angle until the receiver indicator light stays solid.
3. Tighten hardware securely to prevent wind or gate vibration from knocking the unit out of alignment.

Installing hooded, weather-shielded sensor housings, a solution frequently recommended by Ironworks Gate Co., can help prevent morning marine layers and irrigation overspray from causing false stops.

Step 3: Test Gate Motor Capacitors and Limit Switches (Practical Advice)

When an operator hums loudly upon receiving a command but fails to move, the issue is often electrical or mechanical binding rather than a failed motor. In single-phase AC operators, the start capacitor provides initial torque to overcome inertia.

Identifying a Failing Start Capacitor

Capacitors degrade over time, especially inside metal control boxes exposed to heat. When a capacitor drops below its rated tolerance, the motor may hum under load and shut down on thermal overload. Testing a capacitor requires safely discharging the unit and measuring capacitance with a digital multimeter. Out-of-spec capacitors must be replaced to restore proper motor torque.

Resetting Limit Switches and Travel Settings

Travel limit switches establish the open and closed positions. In coastal properties, corrosion can affect mechanical limit nuts, micro-switch levers, or magnetic reed sensors. If the gate stops partway or travels past its stop bracket, limits may need cleaning, readjustment, or replacement.

Step 4: Inspect Track Debris, Heavy Hinges, and Footing Shift (Practical Advice)

Physical drag on the gate structure directly impacts motor performance. Modern gate operators often feature built-in current sensing that reverses or halts movement if mechanical resistance exceeds safety thresholds.

Addressing Soil Movement and Sagging Posts

Along coastal hillsides or sandy soils, concrete footings may shift over time. When a swing gate post tilts, the gate leaf can sag and drag across pavement. Inspect ball-bearing hinges for worn rings, rust staining, and frame drop. Sagging gates require structural hinge realignment or post reinforcement for reliable operation.

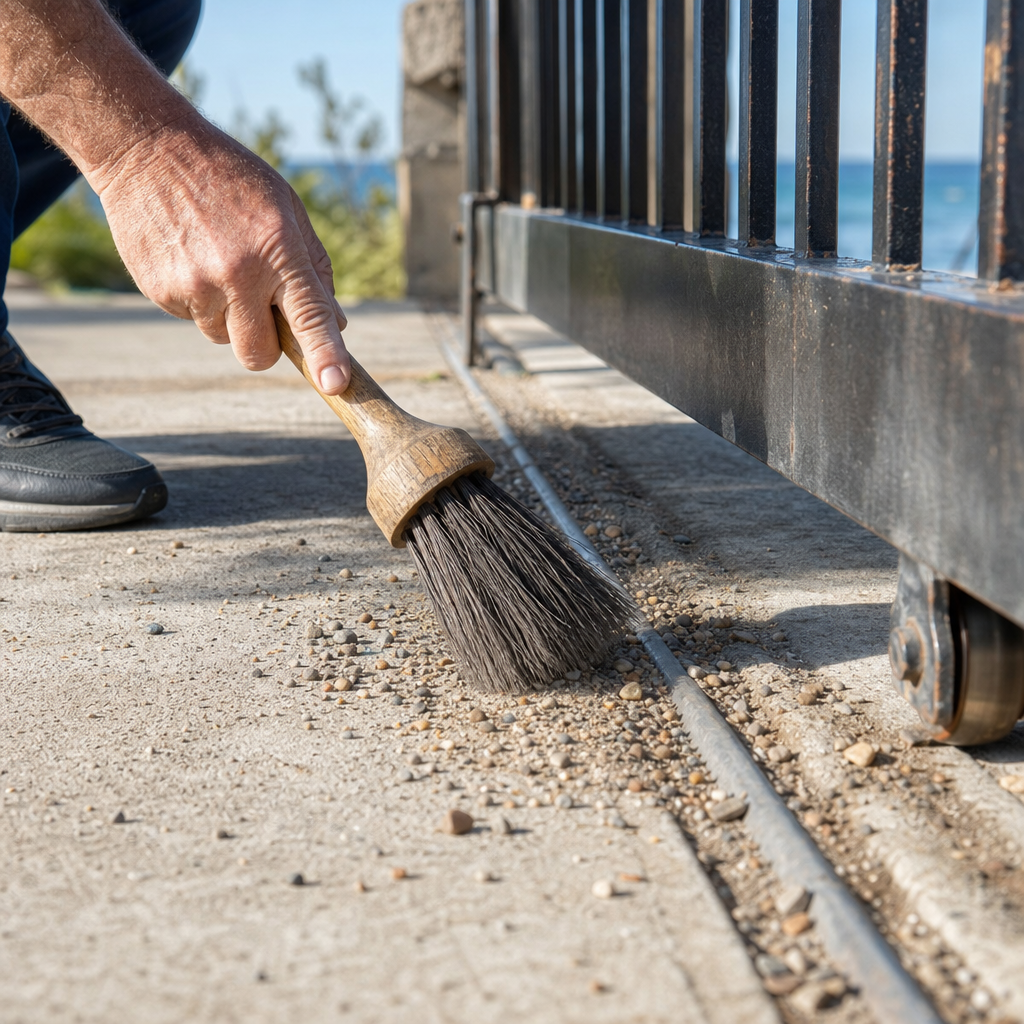

Clearing Sliding Gate Tracks and V-Groove Wheels

For sliding gates, sand, gravel, and rust can settle inside the ground track channel. As wheels roll over debris, the motor may draw higher amperage and halt. Regularly sweeping the track clean and inspecting wheel bearings helps prevent binding.

Step 5: Safely Engage Manual Release and Lubricate Hardware (Practical Advice)

When power fails or an operator suffers an internal breakdown, manual release allows the gate to open without damaging drive gears.

Manual Disconnect Steps

1. Turn off the main power switch at the operator before troubleshooting.
2. For slide operators, use the key to turn the release handle and disengage the internal drive clutch or chain.
3. For linear swing actuators, unlock the release collar or remove the quick-release pin connecting the arm to the bracket.
4. Move the gate slowly by hand to verify it swings or slides freely without catching.

Proper Hardware Lubrication

Avoid standard light penetrating oils on outdoor gate hardware, as they can break down heavier grease and attract dirt. Applying heavy-duty grease to hinge fittings and coating exposed roller chains with a dry-film PTFE lubricant, as advised by Ironworks Gate Co., can help protect moving parts.^[4]

Step 6: Gate Motor Repair vs. Full Replacement

Deciding whether to rebuild an existing operator or install a new system depends on machine age, parts availability, and the extent of wear or corrosion.

When to Repair vs. Replace

(Note: The following 10 to 12 year and 50 percent threshold is an opinion-based guideline not verified by research context data.) As an opinion-based practical guideline, if an operator is over 10 to 12 years old and the estimated repair cost exceeds 50% of a new unit, replacement is often considered. Older operators may lack modern monitored safety inputs referenced in current safety standards.

System Feature (Practical Comparison)	Legacy AC Operator	Standard DC Operator	Coastal Smart DC Operator
Battery Backup	Rare / Bulky Inverter	Standard Integrated	Multi-Cycle Lithium / AGM
Chassis Protection	Unsealed Sheet Metal	ABS Molded Plastic	NEMA 4X Sealed Weatherproof
Safety Monitoring	Single Unmonitored Input	UL 325 Monitored Inputs	Dual Monitored Photo-Eyes + Edges

Features of Modern DC Systems (Practical Advice)

Modern DC gate operators often offer soft-start and soft-stop operation to reduce mechanical stress on hinges and track hardware, along with options for integrated battery backup and remote access control.

Practical Cost Guidelines for Automatic Gate Repair

(Practical Advice Note: The following price ranges are unverified practical estimates and vary by region, operator type, and project scope.)

Estimated Service Cost Ranges

Service Type	Typical Cost Range (Practical Estimate)
Diagnostic Fee & Minor Adjustments	$150 – $350
Track, Wheel, & Hinge Rebuilds	$250 – $600
Control Board, Capacitor, & Motor Repairs	$550 – $1,000
Full Operator Overhaul & Replacement	$900 – $1,500+

Factors Influencing Repair Rates

Project costs vary depending on property-specific factors such as access constraints, heavy gate materials, architectural requirements, and the need for specialized weather-resistant mounting hardware.

Automatic Gate Opener Brands (Practical Industry Examples)

(Practical Advice Note: Brand references are provided as practical industry examples and are not verified by the research brief.)

Common Manufacturers

• LiftMaster: Common on residential properties, offering DC slide and swing operators with smart access controls and monitored safety accessories.
• DoorKing (DKS): Known for pad-mounted commercial and residential systems designed for continuous operation.
• Viking Access Systems: Produces digital control boards, linear swing arms, and solar-compatible configurations.
• Nice Apollo: Specializes in swing and slide gate automation for residential, commercial, and rural applications.

Replacement Components

Using manufacturer-specified OEM circuit boards, capacitors, and safety devices, as noted by Ironworks Gate Co., helps ensure compatibility and proper system operation.

Frequently Asked Questions About Automatic Gate Repair

Why does an automatic gate stop working after rain or heavy fog?

(Practical Advice) Moisture can interact with debris or mineral residues on electrical terminal blocks, potentially causing electrical faults. Condensation on safety photo-eye lenses can also scatter infrared beams, preventing the gate from closing.

Can an automatic gate motor be repaired, or does it have to be replaced?

(Practical Advice) Many motor issues can be repaired by addressing specific components such as start capacitors, internal drive gears, limit switches, or control boards, depending on the severity of the damage.

How often should automatic driveway gates be serviced?

According to guidelines from Ironworks Gate Co., residential driveway gates should receive annual professional servicing, with more frequent maintenance recommended for heavy-use systems or harsh environments.

What are the most common causes of automatic gate failure?

(Practical Advice) Common causes of gate issues include misaligned or dirty safety sensors, depleted remote batteries, insect intrusion in control boxes, worn capacitors, track obstructions, and misaligned hinges causing mechanical binding.

Who should I call for automatic gate repairs?

Property owners should contact a qualified gate automation specialist who uses appropriate replacement components and provides clear, written estimates before beginning repair work.

Sources

1. Injury patterns and epidemiology of automatic door-related … – pubmed.ncbi.nlm.nih.gov (2024)
2. [PDF] Residential-Garage-Door-Operators-Revision-of-UL-Standards … – cpsc.gov (2023)
3. New Safety Standard for Automatic Security Gates Helps … – cpsc.gov (2000)
4. Standards for the Hidden Dangers of Gates – ASTM – astm.org

Related reading: Sliding Vs Swing Gate – Call Now-10% Off – Same-Day Service – Free Estimate

Related reading: Gate Sensor Repair | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate

Related reading: How to Manually Open Electric Gate – Call Now-10% Off – Same-Day Service – Free Estimate

Frequently Asked Questions

What should I do if my electric gate is stuck closed and traps my car during an emergency?

First, use the manual release key or disconnect pin to disengage the operator clutch and open the gate leaf by hand. If physical binding or post sag prevents manual movement, call the 24/7 dispatch line at Ironworks Gate Co. for immediate, same-day automatic gate repair.

How can I prevent coastal salt air from corroding my gate's electrical control board?

Installing NEMA 4X weatherproof operator enclosures and hooded photo-eye housings prevents airborne salt crystals and marine fog from shorting low-voltage circuits. Property owners can request a free on-site gate assessment with Ironworks Gate Co. to evaluate marine-grade protection and weatherproofing options.

Can an older gate operator be retrofitted with modern UL 325 safety sensors without replacing the motor?

Legacy systems can often accommodate monitored infrared sensors and safety edges if the control board supports monitored inputs. Technicians from Ironworks Gate Co. can inspect your operator's wiring and mechanical condition to determine whether a control board retrofit or a modern DC operator replacement is the most cost-effective solution.
